File Transfer Protocol (FTP) is a standard network protocol used to transfer files from one host to another over a TCP-based network.

FTP is built on a client-server architecture and uses separate control and data connections between the client and the server.

For secure transmission that hides (encrypts) the username and password, and encrypts the content, it is used FTP secured with SSL (FTPS).

Jelastic supports both FTP and FTPS.

Unlike HTTP, the FTP protocol is stateful: you establish a control connection for the duration of an FTP session that typically spans multiple data transfers.

FTP usage in Jelastic:

• uploading/downloading resources
• downloading and reading logs for analysing
• editing configurations
• syncing files
• deploying applications (not recommended)

With Jelastic FTP feature is available for both application servers and databases.

To benefit from FTP with Jelastic you need to meet three requirements:

• to have FTP client installed (for example, FileZilla)
• to have compute node added to the environment
• to attach Public IP for the node in your environment

Let’s go step-by-step the process of adding FTP to your Jelastic environment:

• Create Environment
• Install FTP
• Using FTP
• Transfer Files
• Download Log Files
• Synchronize Files
• Edit Configuration Files
• Deploy Application via FTP
• Switching FTPS
• Reset FTP Password
• State Custom FTP Password
• Uninstall FTP

Create Environment

1. Log in to the Jelastic dashboard.

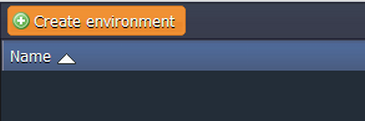

2. Click Create environment to set up a new environment in Jelastic.

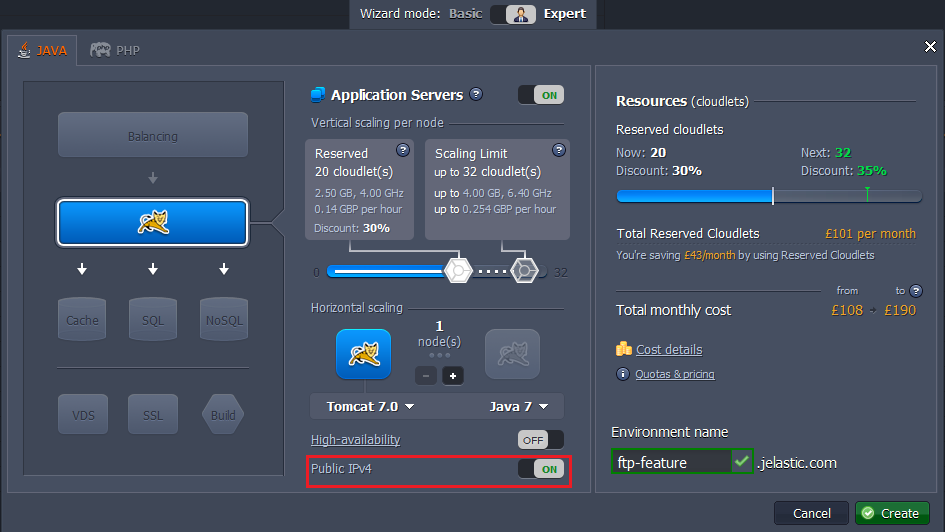

3. In the opened wizard select application server (e.g.Tomcat) or database (e.g. MySQL) and switch on Public IP.

Wait just a few seconds for your environment to be created.

Install FTP

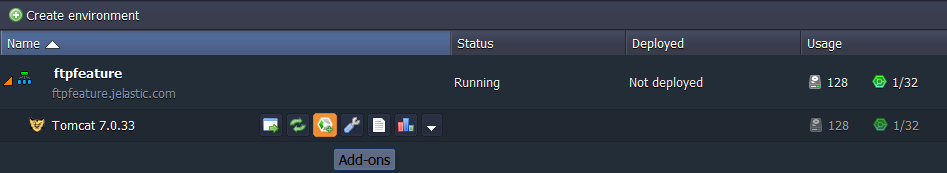

1. Click Add-ons button for your application server (or database).

2. In the opened tab you’ll see the list of all applications available for adding to your environment. Find FTP and click Install.

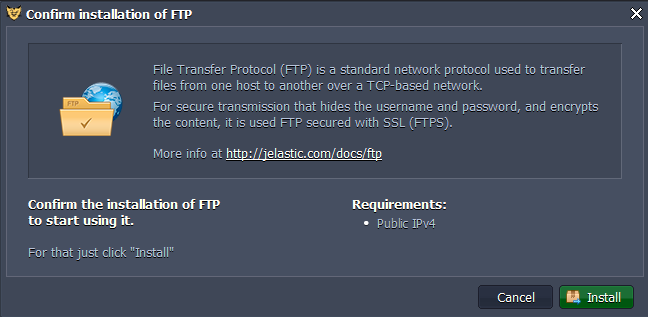

3. Сonfirm the installation by clicking Install button in the opened window.

4. After adding FTP to the Jelastic environment you’ll get the email with credentials for accessing (FTP links, Login, Password, IPs etc.).

Using FTP

Through FTP Client

1. Install and open any FTP client (e.g. FileZilla).

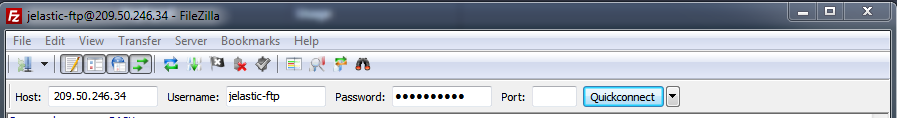

2. Enter your Host, Username and Password using the FTP credentials you’ve got in the email after installation. Perform the connection.

3. Now you can see the list of the config folders in your FTP client.

4. You can make the changes you need (download, copy, delete the files etc.) right from your FTP client.

5. If you refresh the data in the config tab for your server (or database) in the Jelastic dashboard, you’ll see all changes made through FTP client.

Through Browser

1. Click Add-ons button for your application server (or database).

2. Find FTP in the list of applications. There you’ll see the list of IPs available.

3. Click on the IP link. In the opened browser tab fill in your FTP credentials (Username and Password which you’ve got in the email after installation).

4. After that the list of config folders are going to be opened. Here you can look through the files in all the folders.

Transfer Files

1. Install and open any FTP client (we use FileZilla as an example).

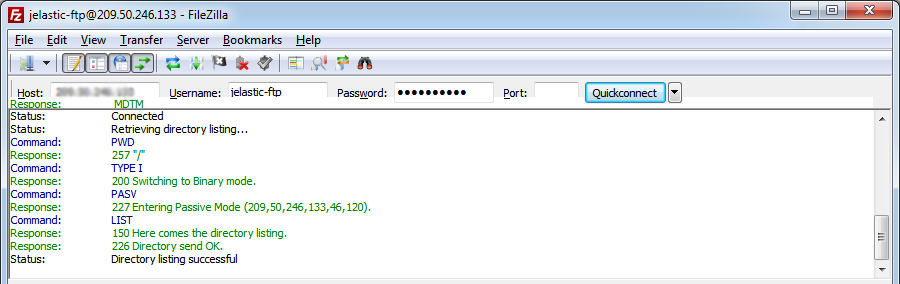

2. Enter your Host, Username and Password using the FTP credentials you’ve got via email after FTP installation. Perform the connection by clicking Quickconnect.

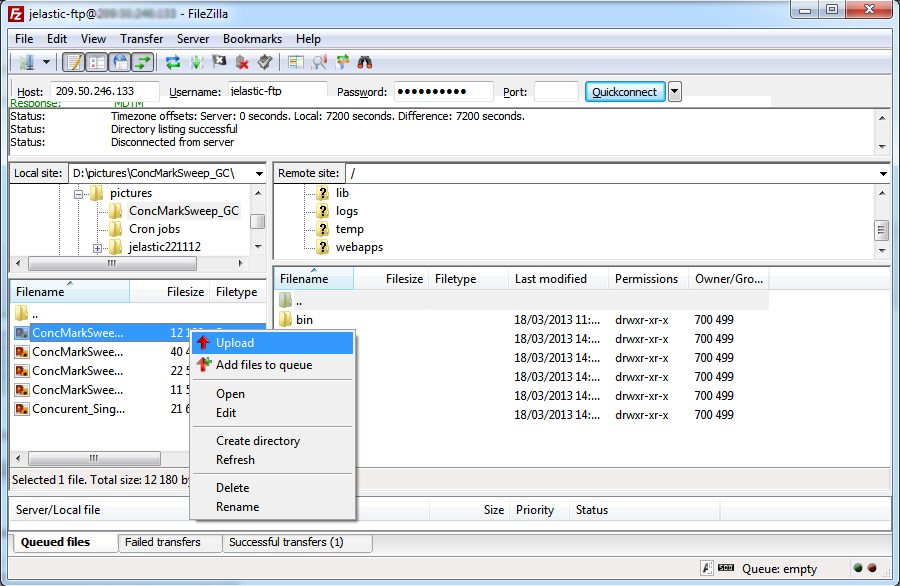

3. You can upload or download files simply by double-clicking on them. To transfer directories and/or multiple files select them, right-click the selection and then click on Upload/Download in the popup menu.

4. You can simply drag the files from one directory and drop them on the other one for transferring.

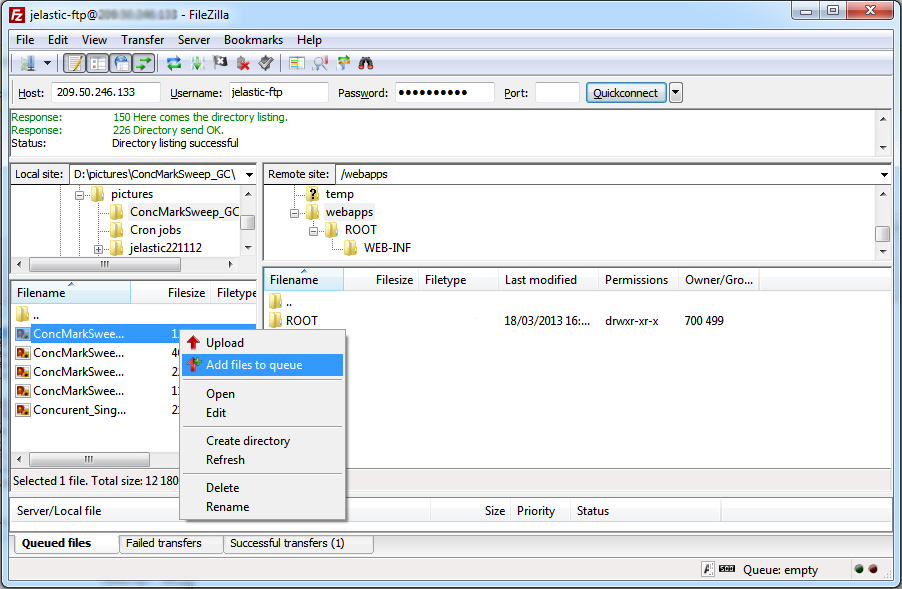

5. Add your files to the queue if you want to transfer them later.

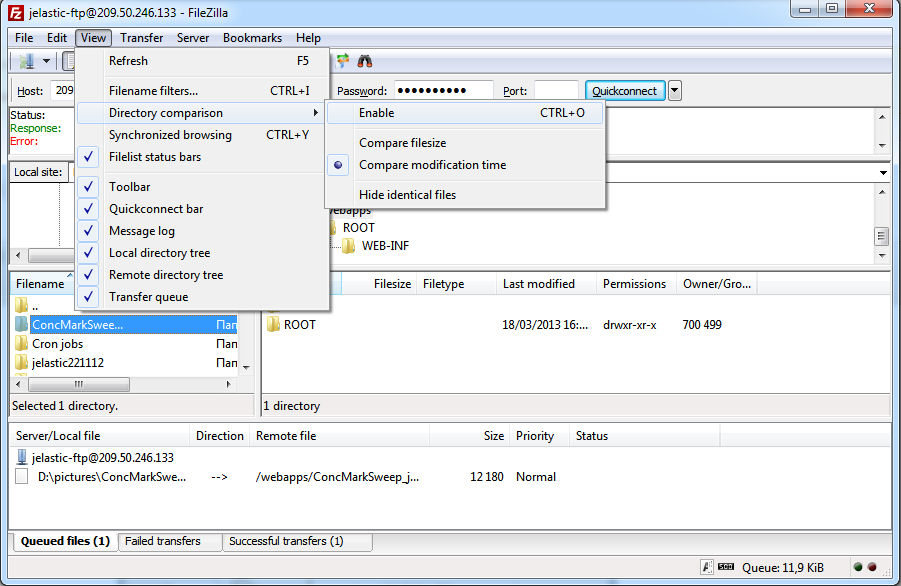

6. One more useful feature is directory comparison. To quickly see differences between files on the local machine and the server, choose View > Directory Comparison, select either compare file size or compare modification time and click Enable.

Download Log Files

1. Install and open any FTP client (we use FileZilla as an example).

2. Enter your Host, Username and Password using the FTP credentials you’ve got via email after FTP installation. Perform the connection by clicking Quickconnect.

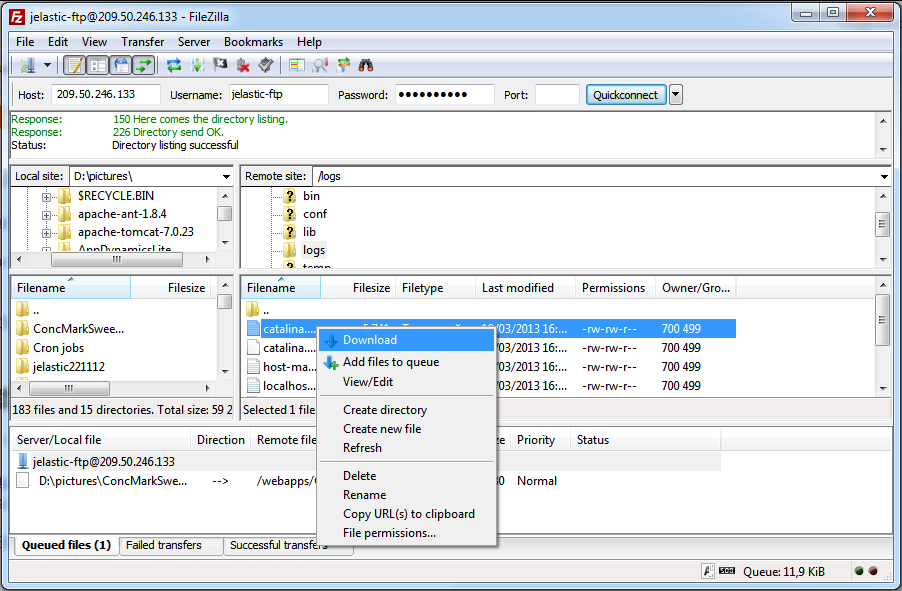

3. Now you can simply export your logs: navigate to the logs folder, select the log file you need, download it as it’s shown in the screenshot below and open in any convenient editor to review.

Synchronize Files

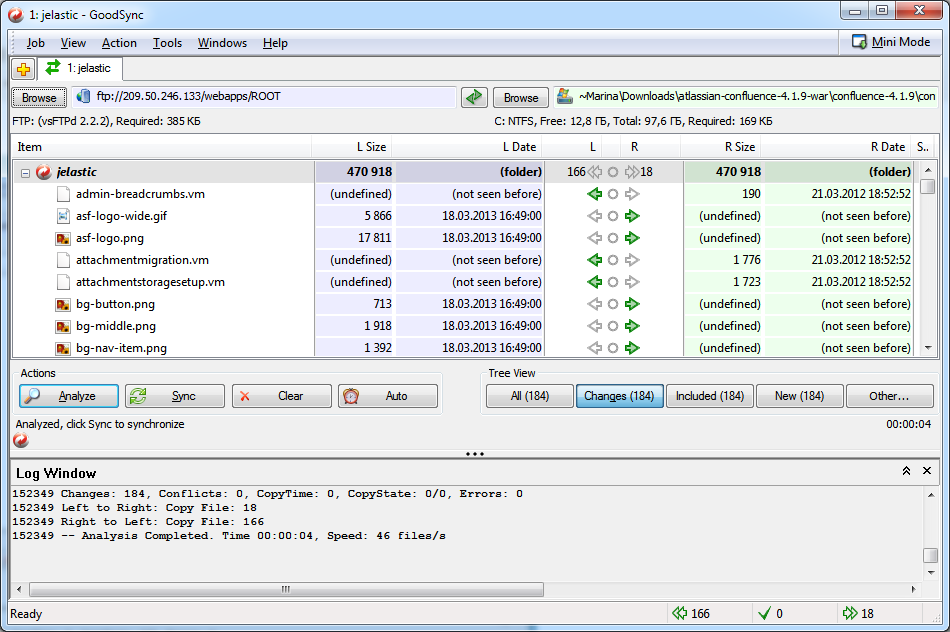

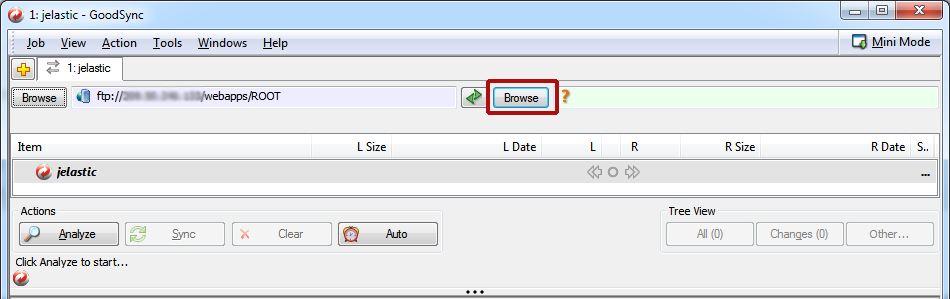

1. Install and start GoodSync. Click the Browse button on the left side.

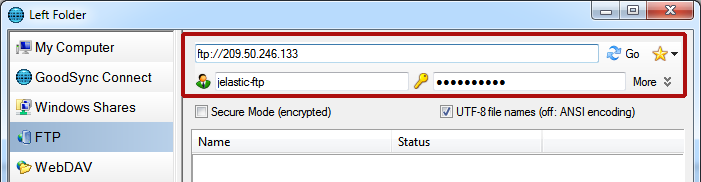

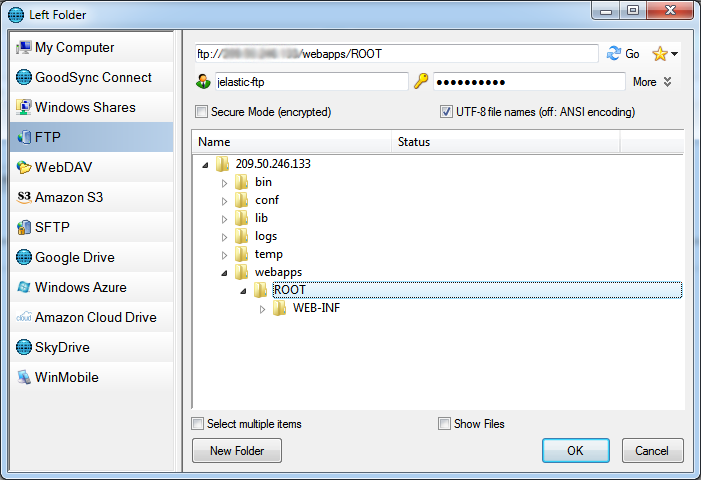

2. In the opened window choose the FTP tab, fill in the required fields (Host, Username, Password) and click Go button.

3. Then choose the necessary folder on your server and click OK.

4. After that click the Browse button on the right side and choose the local folder you would like to back up or sync your data to.

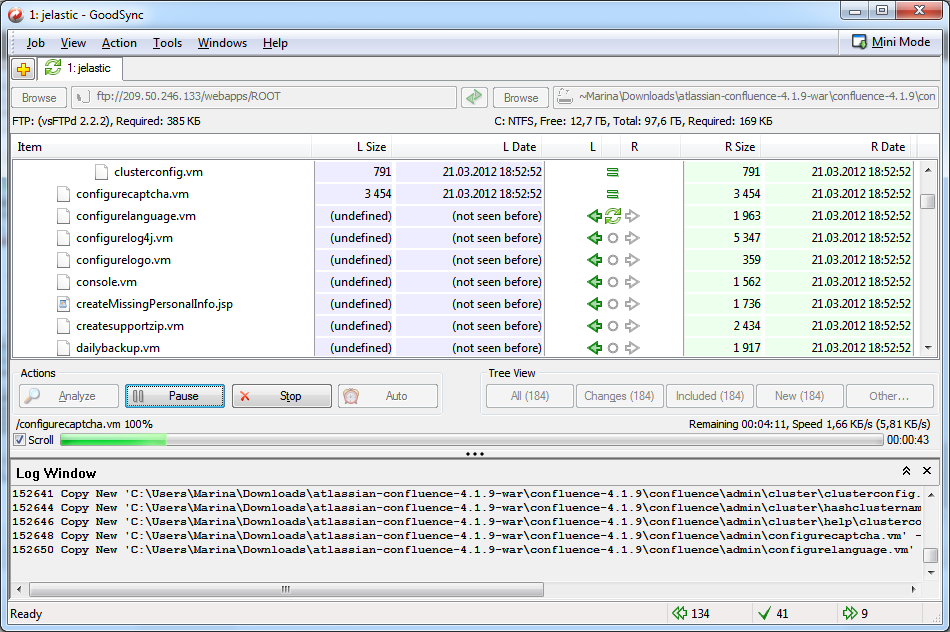

5. Then in the main window click the Analyze button. You will be shown all the differences in the chosen folders.

6. Click the Sync button to perform the synchronization.

Edit Configuration Files

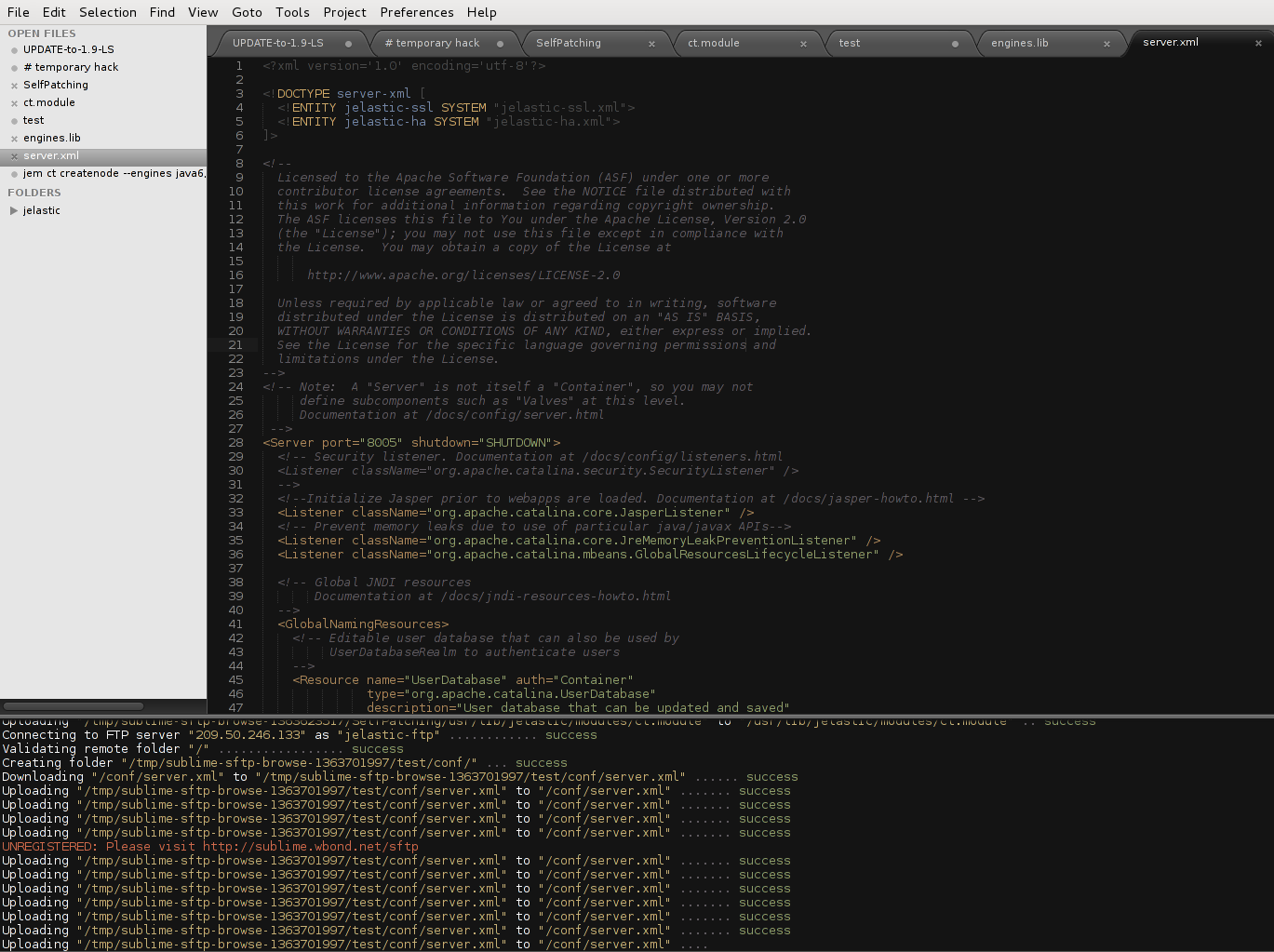

1. Open your config editor (we use Sublime Text 2 as an example).

2. Connect to your server (or database) via FTP (if you use Sublime click File->FTP/SFTP->Browse server) and you can start edit your files.

Deploy Application via FTP

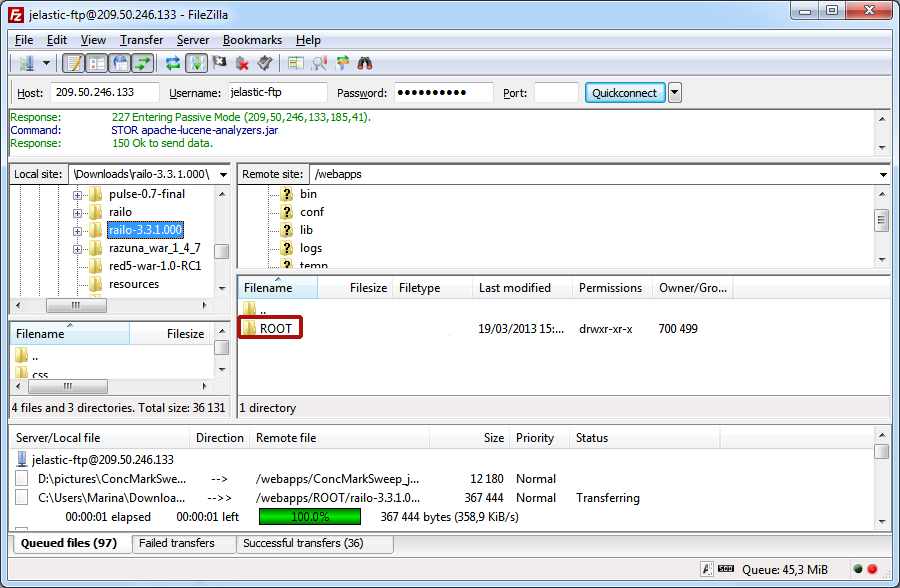

Let’s consider a short example on how to deploy Railo to your Jelastic environment through FileZilla.

1. Install and open any FTP client (we use FileZilla as an example).

2. Connect to your environment via FTP: Enter your Host, Username and Password and click on the Quickconnect button.

3. Copy your application files into the ROOT folder (or create another context for your app and copy your files in it).

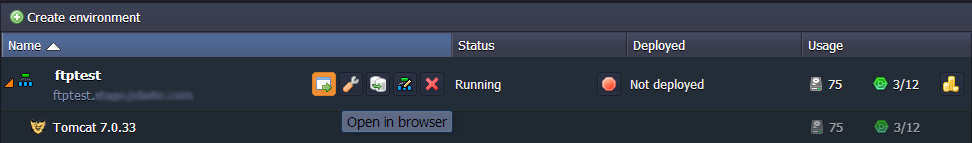

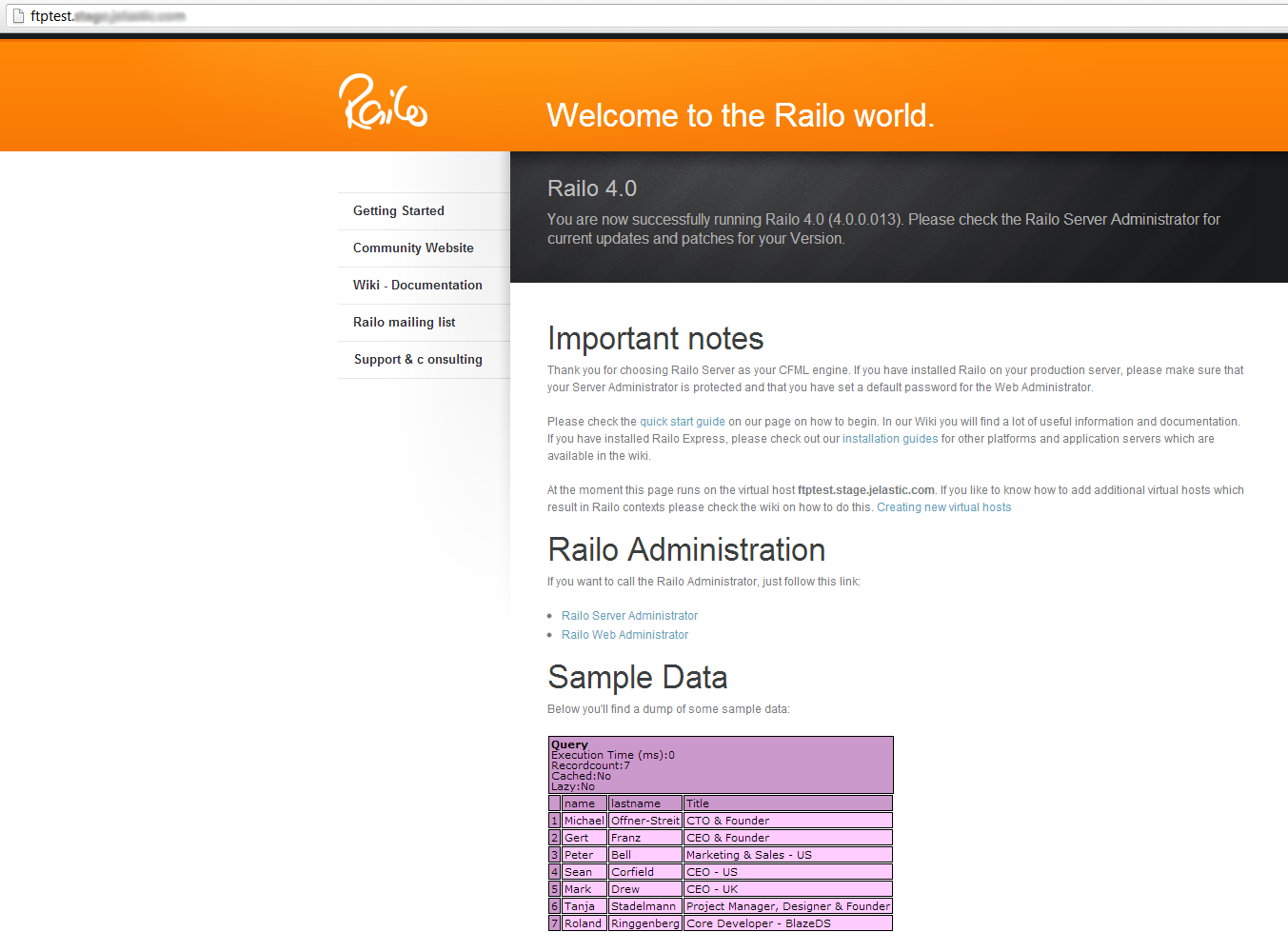

4. Now you can return to the Jelastic dashboard and make sure that everything is ok. For that click Open in Browser button for your environment.

Switching FTPS

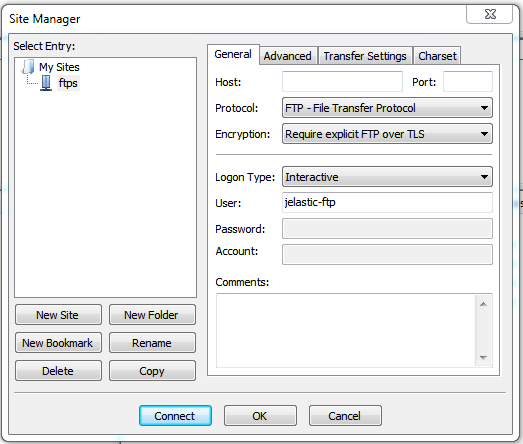

1. Navigate to your FTP client > File > Site manager (as an example, we use FileZilla).

2. Create New Site and fill in required data:

• Host (use your FTP credentials)
• Protocol (FTP - File Transfer Protocol)
• Encryption (Require explicit FTP over TLS)
• Logon Type (Interactive)
• User (use your FTP credentials)

3. Click Connect.

4. Enter password.

5. Now you are connected through FTPS.

Reset FTP Password

1. Click Add-ons button for your application server (or database).

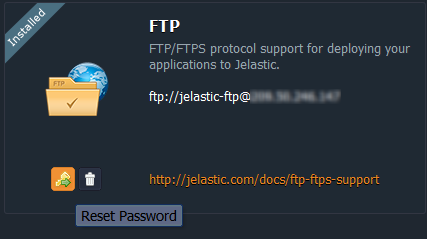

2. Find FTP in the list of applications and click Reset Password button.

3. You’ll be sent the email with a new FTP password.

State Custom FTP Password

You can change the password of FTP-addon, installed at your environment. Using custom password instead of one, which was automatically generated and sent to you via email while FTP-addon installation or password resetting, highly improves your application security.

Your FTP password can be changed via SSH following the next steps:

1. Generate an SSH key and add it to your dashboard.

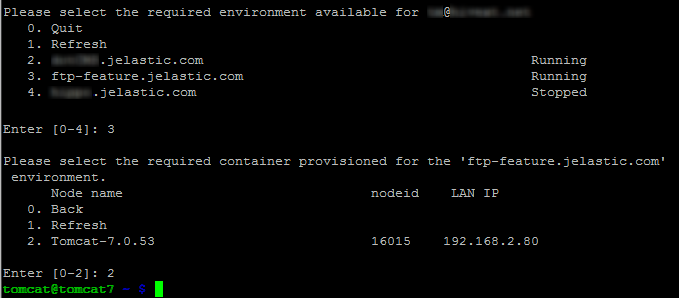

2. Access a necessary container with the installed FTP-addon via SSH.

3. Execute the following command inside the container:

1

sudo /usr/bin/passwd jelastic-ftp

4. Enter and confirm your new password.

Now you can use a new password for accessing your environment via FTP protocol.

Uninstall FTP

1. Click Add-ons button for your application server (or database).

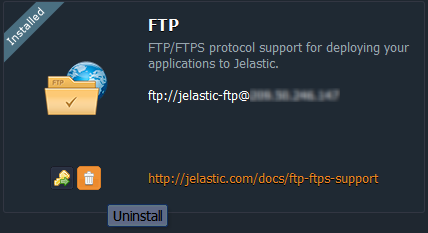

2. Find FTP in the list of applications and click Uninstall.
